DIGITUS CAT 6A Keystone Modul, geschirmt, Set (24 Stück)
You have to log in to shop/see prices.
|
|
DIGITUS CAT 6A Keystone Modul, geschirmt, Set (24 Stück)
|
Description
Specifications

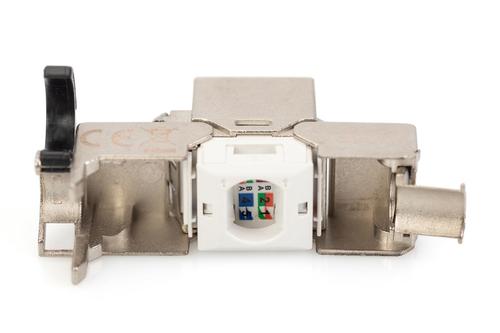

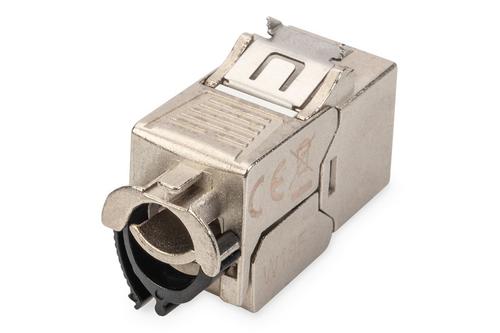

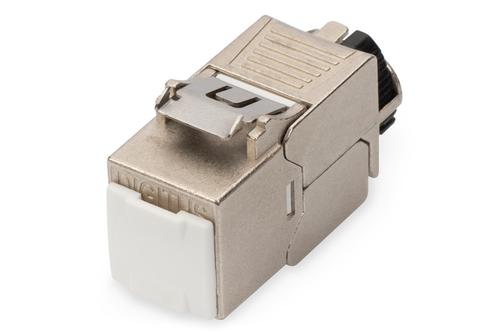

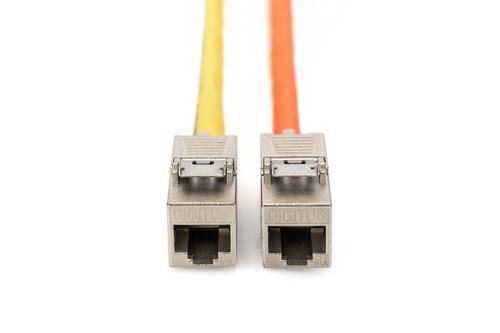

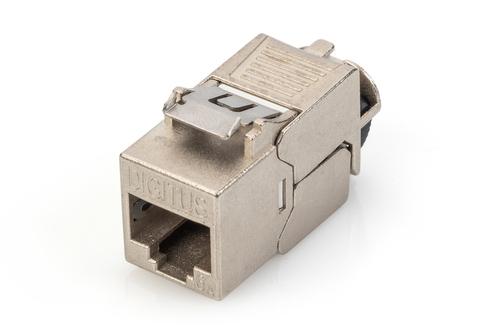

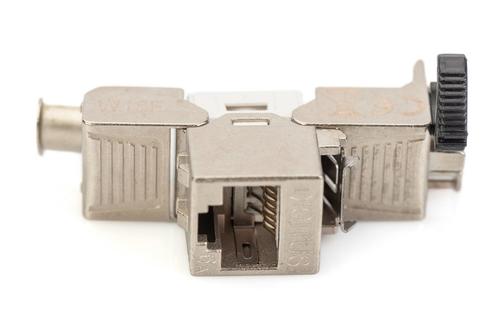

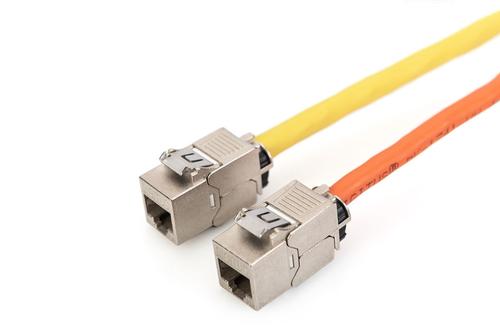

The shielded CAT 6A Keystone Module Set DN-93619-24 from DIGITUS® convinces with future-oriented standards and high-end quality for your network. The modules have a 360° cable screen connection, a metal snap-in and a reclosable, intelligent cable manager for strain relief and cable fixing. The compact design allows a series installation of 24 units in 483 mm (19") 1U panels. Tool-free installation via IDC strip, colour-coded to EIA/TIA 568 A&B. Due to its compact design, the module also fits into design-compatible modular wall outlets.

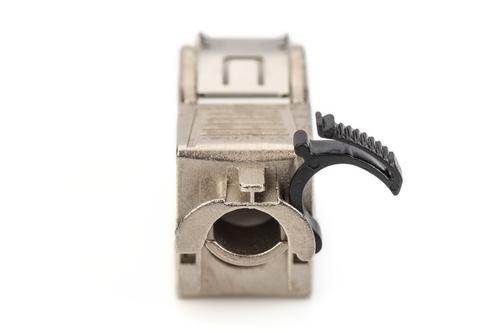

- Strain relief and cable fixing via smart cable manager
- 360° cable screen connection
- Tool-free installation (field assembly)
- Suitable for design compatible modular patch panels and modular network outlets
- CAT 6A with IDC strips
- Metal snap-in
- Dust covers for RJ45 sockets
- Category 6A 10GBase-T, 500 MHz
- ISO/IEC 11801 3rd Edition, EN 50173-1
- Suitable for PoE/PoE+ (IEEE 802.3af, 3at)
- Suitable for modular patch panel and modular wall outlet installation
- RJ45-Jack, 8P8C
- Cable installation via IDC, according to EIA/TIA 568 A&B
- Tool-free installation
- 360° cable screen connection for enhanced EMV protection
- Housing material: Zinc-diecast, nickel plated
- Contact material: Phosphor bronze
- Coating contact: Nickel, gold plated 0,5 µ
- Insertion force: Max. 30N (acc. IEC 60603-7-5)
- Retention strength: 7.7 kg between jack and plug
- Operation temperature: -20°C up to +70°C (ISO/IEC 11801, ANSI/TIA 568 C.2)
- Mating cycles female: ≥ 750 (ISO/IEC 11801, IEC 60603-7-5)
- IDC wire size: AWG (26/7 - 22/1), solid and stranded conductor
- Tested with AWG 22/1 solid installation cable
- (DIGITUS® DK-174X-A-VH-X; AWG 22/1 CAT 7A installation cable)
- Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
- Cable installation via IDC strips, color coded according to EIA/TIA 568 A & B
- Smart cable manager (recloseable)
- Dimensions (HxWxD): 21.0 x 14.5 x 34.5 mm
- Weight: 19.5 g
- Colour: Silver
- Model: Bus (jack)
- Connection type: LSA
- Screened: yes
- Category: 6A (IEC)
- Suitable for round cable: yes
- Suitable for litz wire conductor: yes
- Suitable for solid core: yes
- Type of connector: RJ45 8(8)
- AWG-range: 26 … 22
| Konstruktionstype | Flad |
| Farve på produkt | Sølv |
| Stik 1 | RJ-45 |
| Stik 1 køn | Hanstik |
| Kabelteknologi | 10GBase-T |
| Belægning på kontakter | Nikkel/guld |
| AWG ledningsstørrelse | 26/22 |
| Typer kabel, der understøttes | Cat6a |
| Kabelafskærmning | S/UTP (STP) |
| Materiale kabinet | Zink |
| Indbygget støvdæksel | Yes |
| Frekvens | 500 Mhz |
| Bredde | 14,5 mm |
| Dybde | 34,5 mm |
| Højde | 21 mm |
| Vægt | 19,5 g |
| Antal pr. pakke | 24 stk |
