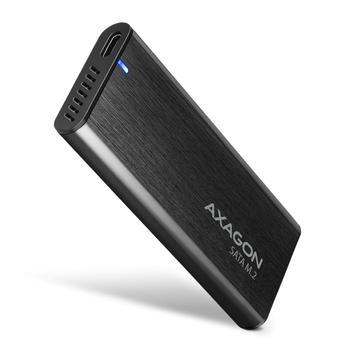

AXAGON EEM2-SBC externes Gehäuse für M.2 SSDs USB-C 3.2 Gen 2 - schwarz SSD-Gehäuse
You have to log in to shop/see prices.
|
|
AXAGON EEM2-SBC externes Gehäuse für M.2 SSDs USB-C 3.2 Gen 2 - schwarz SSD-Gehäuse
-
Disk Interface
M.2, SATA, USB
-
Installed
0GB
-
Max Disks
1
-
RAID
No
-
Type
Carrier
|
Description
Specifications
EEM2-SBC SuperSpeed+ USB-C - M.2 SATA SSD RAW box
EEM2-SBC
Features:
- Input USB 3.2 Gen 2
- Output M.2 SATA, SATA 6G, UASP
- rate up to 10 Gbit/s
- PC connection USB type A-M, disconnectable cable, cable 20 cm
- Device support M.2 2242, M.2 2260, M.2 2280
- design metal casing
- Extra TRIM
Specifications:
Input
- interface USB 3.2 Gen 2 / USB 3.2 Gen 1 / USB 3.1 Gen 1 / USB 3.0 / USB 2.0
- rate 10.000 / 5.000 / 480 Mbit/s (super+ / super / high speed)
- connector USB Type C female (on the box)
- connector USB type A male (on cable to PC)
- cable 20 cm, disconnectable
Output
- interface SATA M.2 (AHCI)
- connector 75-pin M.2 B-key
- compatibility all SATA M.2 SSD
- total permeability 10 Gbit/s theoretically (given by USB 3.2 Gen 2 input)
Supported device
- M.2 22110 -
- M.2 2280 yes
- M.2 2260 yes
- M.2 2242 yes
- M.2 2230 -
- max. disk capacity all, without limitations
Supported features
- UASP yes
- TRIM yes
- boot from connected disk yes
- automatic installation yes
- Plug and Play yes
- Hot Plug yes
Other features
- design metal
- screwless mounting yes
- indication 1 LED
- dimensions 94 x 41 x 10 mm
- weight 36 g
Power supply
- on the bus USB bus power
- through power adapter -
OS support
- MS Windows 11 / 10 / 8.1 / 8 / 7
- Mac OS yes
- Linux yes
| Størrelse på lagerdisk | M.2 |
| Understøttede lagerdrev brugerflader | SATA, Serial ATA II, Serial ATA III |
| Antal understøttede lagerdiske | 1 |
| Understøttede lagerdisk længder | 42,60,80 mm |
| NVMe | No |
| USB-tilslutning | Yes |
| USB version | 3.2 Gen 2 (3.1 Gen 2) |
| USB-stik type | USB Type-C |
| USB-stik køn | Hunstik |
| Antal USB-porte | 1 |
| Produkttype | SSD kabinet |
| Produktfarve | Sort |
| Materiale | Aluminium |
| LED-indikatorer | Ja |
| Certificering | CE, RoHS |
| Dataoverførselshastighed | 10 Gbit/sek. |
| Understøtter UASP | Yes |
| Understøttelse af TRIM | Yes |
| Understøtter S.M.A.R.T. | Yes |
| Plug and play | Yes |
| Strømkilde type | USB |
| Ekstern strømadapter | No |
| Understøttede mobile operativsystemer | Ja |
| Understøttede Windows-operativsystemer | Ja |
| Understøttede Linux-operativsystemer | Ja |
| Understøttede Mac-operativsystemer | Ja |
| Bredde | 94 mm |
| Dybde | 41 mm |
| Højde | 10 mm |
| Vægt | 36 g |
| Kabellængde | 0,2 m |
| Pakkebredde | 175 mm |
| Pakkedybde | 80 mm |
| Pakkehøjde | 26 mm |
| Pakkevægt | 81 g |
| Pakketype | Kasse |
| AC-adapter inkluderet | No |
| Kabler inkluderet | USB Type-C til USB Type-A |
| Brugervejledning | Yes |
| Garantiperiode | 2 År |
| Compliance-certifikater | RoHS |
