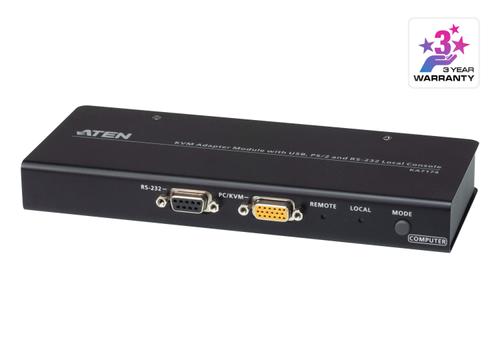

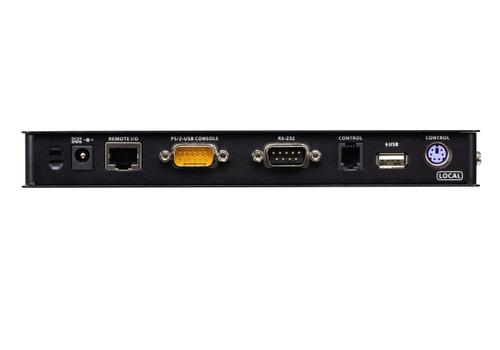

ATEN USB VGA KVM Adapter Module with USB, PS/2 and RS-232 Local Cons.
You have to log in to shop/see prices.
|
|
ATEN USB VGA KVM Adapter Module with USB, PS/2 and RS-232 Local Cons.
|
Description
Specifications
Related products
ATEN KA7174. Tastatur porttype: USB, PS/2, Mus porttype: USB, PS/2, Konsol porte: SPHD. HD-type: WUXGA, Maksimal opløsning: 1920 x 1200 pixel, Video båndbredde: 60 Hz. Produktfarve: Sort, Husmateriale: Metal. Indgangsspænding: 5 V, Strømforbrug (typisk): 1,75 W. Bredde: 86,4 mm, Dybde: 203 mm, Højde: 25 mm
| Tastatur porttype | USB, PS/2 |
| Mus porttype | USB, PS/2 |
| Konsol porte | SPHD |
| Serie porttype | DE-9 (DB-9) |
| Antal serielle porte | 2 |
| DC-in-stik | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN-porte (RJ-45) | 1 |
| HD-type | WUXGA |
| Maksimal opløsning | 1920 x 1200 pixel |
| Video båndbredde | 60 Hz |
| Stativ-montering | No |
| Produktfarve | Sort |
| Husmateriale | Metal |
| LED-indikatorer | Ja |
| Trykknap | Yes |
| Indbygget skærm | No |
| Indgangsspænding | 5 V |
| Strømforbrug (typisk) | 1,75 W |
| Driftstemperatur (T-T) | 0 - 50 °C |
| Opbevaringstemperatur (T-T) | -20 - 60 °C |
| Relativ luftfugtighed ved drift (H-H) | 0 - 95% |
| Relativ luftfugtighed ved opbevaring (H-H) | 0 - 95% |
| Bredde | 86,4 mm |
| Dybde | 203 mm |
| Højde | 25 mm |
| Vægt | 490 g |
| Pakkebredde | 62 mm |
| Pakkedybde | 283 mm |
| Pakkehøjde | 173 mm |
| Pakkevolumen | 3114,85 cm³ |
| Pakkevægt | 1,02 kg |
| Pakketype | Kasse |
| Kapabilitet | KN2116VA,KN2132VA,KN4116VA,KN4132VA,KN4164V,2L-5301UP,KN8132V,2L-5302UP,KN8164V,2L-5303UP,KN2124VA,KN2140VA,KN4124VA,KN4140VA,VE-RMK1U,KN1132V,2XRT-0015G,KA7171AK |
| I/O-porte | 1 x SPHD, 1 x 6-pin Mini-DIN, 1 x USB Type A |
| Harmoniseret systemkode (HS) | 85176200 |
| Hovedkassens bredde (udvendigt) | 300 mm |
| Hovedkassens længde (udvendigt) | 336 mm |
| Hovedkassen højde (udvendigt) | 194 mm |
| Hovedkassens bruttovægt (udvendigt) | 5,61 kg |
| Ydre emballage volumen | 19538,62 cm³ |
| Produkter pr. hovedkasse (udvendigt) | 5 stk |
| Oprindelsesland | Taiwan |
