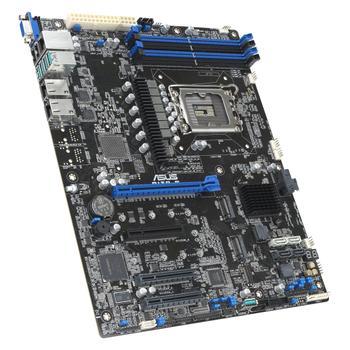

ASUS P13R-E - Bundkort - ATX - LGA1700 sokkel - C266 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN - onboard grafik
-
Processor-socket
LGA 1700 (stik V)
-
Chipset
Intel C266
-
M.2 Slot
2
-
Hukommelses slots
4 x DIMM, DDR5
-
Maksimal RAM-frekvens
4.4GHz
-
Max hukommelse understøttet
128GB
-
Form Factor
ATX
|
P13R-E
Features:
- Powered by an 8-core Intel® Xeon® E-2400-series processor with support for up to 95 watt TDP
- Flexible expandability with eight SATA ports, two PCIe 5.0® slots and two PCIe 4.0 slots.
- Dual Intel I210-AT2 gigabit Ethernet ports with teaming support
- Four DDR5 ECC UDIMM slots for up to 128 Gbps and two M.2 22110 slots for faster OS booting
- Onboard ASUS ASMB11-iKVM with ASPEED AST2600 controller for out-of-band management
- ATX motherboard featuring high computing capability -- an ideal platform for SMB general purpose, compute and storage servers
Specifications:
Processor / System Bus
- 1 x Socket LGA1700
- Intel® Pentium® Processors
- Intel® Xeon® E processors
Core Logic
Memory
- Total Slots : 4 (2-channel)
- Capacity : Maximum up to 128GB
- Memory Type : DDR5 4400 ECC UDIMM
- Memory Size : 128GB
Expansion Slots
- Total Slot : 4
- Slot 1 : PCI-E x8 (Gen4 X4 Link)
- Slot 2 : PCI-E x8 (Gen4 X4 Link)
- Slot 4 : PCI-E x8 (Gen5 X8 Link)
- Slot 6 : PCI-E x16 (Gen5 X16 Link),
- Auto switch to x8 link if slot 4 is occupied
Form Factor
- ATX (12"x9.6", 305mm x 244mm)
ASUS Features
- FAN speed control
- Rack Ready (Rack and Pedestal dual use)
- ASUS Control Center
Storage
- 8 x SATA 6Gb/s ports by 4 Mini-SAS HD connectors
- 2 x M.2 connector(22110,support NVMe PCIe x4 link)
Networking
- 2 x Intel® I210AT2 + 1 x Mgmt LAN
Graphic
- Aspeed AST2600 with 64MB VRAM (VGA from BMC)
On Board I/O
- 1 x VGA Header (VGA from BMC)
- 1 x TPM header
- 1 x COM port
- 6 x Fan Header , 4pin
- 1 x SMBus
- 1 x Chassis Intruder
- 2 x Front LAN LED
- 1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
- 2 x M.2 Connector
- 1 x Internal USB3.2 Gen2 (type-A Vertical)
- 1 x USB3.2 Gen1 header,2 ports
- 1 x USB2.0 header
Back I/O Ports
- 4 x USB 3.2 Gen2
- 2 x USB 2.0
- 1 x VGA port (VGA from BMC)
- 2 x 1 GbE LAN + 1 x Mgmt LAN
Management Solution
- On-Board ASMB11-iKVM for KVM-over-IP
Weight
- Gift Box (1-in-1)
- Net Weight : 0.76 KG
- Gross Weight : 1.3 KG
- Bulk Pack (10-in-1)
- Net Weight : 6.9 KG
- Gross Weight : 9.5 KG
Environment
- Operation temperature: 10℃ ~ 50℃
- Non operation temperature: -40℃ ~ 70℃
- Non operation humidity: 20% ~ 90% ( Non condensing)
Accessories
- Gift Box (1-in-1)
- 1 x I/O shield
- 1 x Plate for LGA1700
- Bulk Pack (10-in-1)
- 1 x I/O shield
- 1 x Plate for LGA1700
Monitoring
