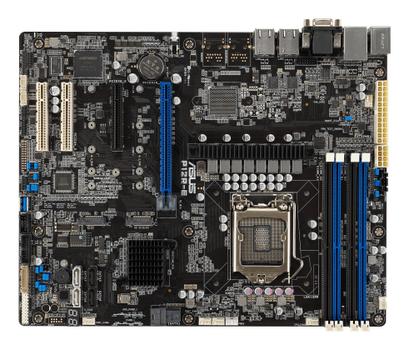

ASUS P12R-E ASMB10 CPNT

P12R-E

• Ideal for remote office/branch office (ROBO) use and everyday business environments
• Powered by eight-core Intel® Xeon E-2300-series processor with support for up to 95 W TDP
• Flexible expandability with eight native SATA HDDs and two PCIe Gen4 slots
• Dual Intel I210AT Gigabit Ethernet with teaming support
• Dual M.2 support up to 22110 PCIe Gen4 x4 Link and PCIe Gen3 x2 Link
• HDMI 1.4 support for high-resolution display maintenance and monitoring
• Optional ASUS ASMB10-iKVM with ASPEED AST2600 controller for out-of-band management
• Optional PFR FPGA as the platform Root-of-Trust solution for firmware resiliency

• 1 x Socket LGA1200
• Intel® Pentium® Processors
• Intel® Xeon® E processors

• Intel® C256 Chipset

• Total Slots : 4 (2-channel)
• Capacity : Maximum up to 128GB UDIMM
• Memory Type : DDR4 3200/2933/2666 UDIMM
• Memory Size : 32GB, 16GB, 8GB

• Total Slot : 4
• Slot Location 1 : PCI-E x8 (Gen3 X4 Link)
• Slot Location 2 : PCI-E x8 (Gen3 X4 Link)
• Slot Location 4 : PCI-E x8 (Gen4 X8 Link)
• Slot Location 6 : PCI-E x16 (Gen4 X16 Link), Auto switch to x8 link if slot 4 is occupied

• ATX (12"x9.6", 305mm x 244mm)

• FAN speed control
• Rack Ready (Rack and Pedestal dual use)
• ASUS Control Center

• Storage Controller :
  • 8 x SATA3 6Gb/s ports by 4 Mini-SAS HD connectors
  • 2 x M.2 connector(2242/2260/2280/22110) both SATA & PCIe mode
• SAS Controller :
  • ASUS PIKE II 3008-8i 8-port SAS 12G RAID card
  • ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card

• 2 x Intel® I210AT + 1 x Mgmt LAN

• Aspeed AST2600 with 64MB VRAM (VGA from BMC)

• 1 x VGA Header (VGA from BMC)
• 1 x HDMI (useable only with iGPU)
• 1 x TPM header
• 1 x COM port
• 1 x PS/2 KB/MS port
• 1 x Onboard header for optional management card
• 6 x Fan Header , 4pin
• 1 x SMBus
• 1 x Chassis Intruder
• 4 x Front LAN LED
• 1 x Serial Port Header
• 1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
• 2 x M.2 Connector
• 2 x USB3.2 Gen2 ports
• 2 x USB3.2 Gen1 ports
• 1 x USB3.2 Gen1 header

• 2 x USB 3.2 Gen 2
• 2 x USB 3.2 Gen 1
• 1 x HDMI Port (useable only with iGPU)
• 1 x VGA Port (VGA from BMC)
• 2 x GbE LAN + 1 x Mgmt LAN
• 1 x PS/2 KB/Mouse

• ASUS Control Center Enterprise (Optional)
• ASMB10-iKVM for KVM-over-Internet(Optional)

• Gift Box (1-in-1)
• Net Weight : 0.76 KG
• Gross Weight : 1.3 KG
• Bulk Pack (10-in-1)
• Net Weight : 6.9 KG
• Gross Weight : 9.5 KG

• Operation temperature: 10℃ ~ 50℃
• Non operation temperature: -40℃ ~ 70℃
• Non operation humidity: 20% ~ 90% ( Non condensing)

• Gift Box (1-in-1)
• 1 x Support CD
• 1 x I/O shield
• 4 x SATA 6G cables
• 1 x Plate for LGA1200
• Bulk Pack (10-in-1)
• 1 x Support CD
• 1 x I/O shield
• 1 x Plate for LGA1200

• CPU Temperature
• Fan RPM
