ASUS MB PROART B660-CREATOR D4

Forsiden Komponenter Bundkort ASUS MB PROART B660-CREATOR D4
For at se vore priser skal du være oprettet som kunde: Er du allerede oprettet som kunde skal du logge ind.

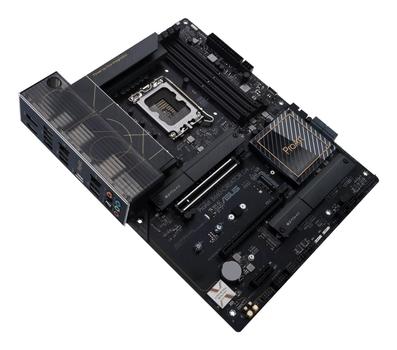

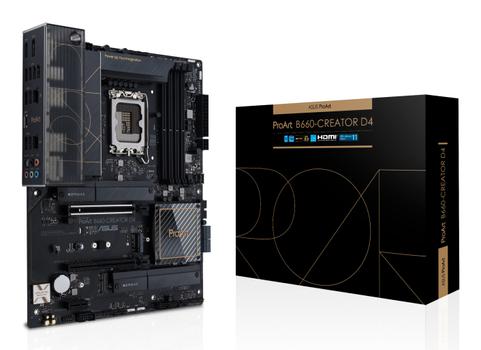

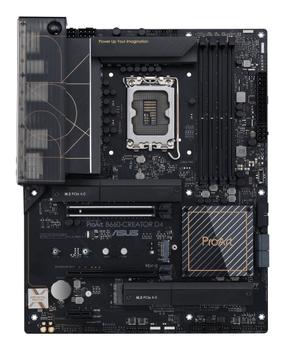

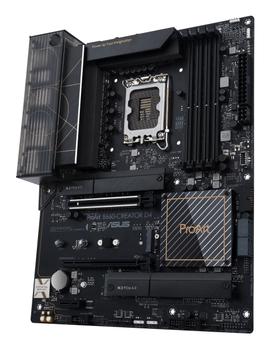

ASUS MB PROART B660-CREATOR D4 (90MB19F0-M0EAY0)
ASUS MB PROART B660-CREATOR D4 (90MB19F0-M0EAY0)
ASUS MB PROART B660-CREATOR D4 (90MB19F0-M0EAY0)
ASUS MB PROART B660-CREATOR D4 (90MB19F0-M0EAY0)
ASUS MB PROART B660-CREATOR D4 (90MB19F0-M0EAY0)
ASUS MB PROART B660-CREATOR D4 (90MB19F0-M0EAY0)
ASUS MB PROART B660-CREATOR D4 (90MB19F0-M0EAY0)
ASUS MB PROART B660-CREATOR D4 (90MB19F0-M0EAY0)
ASUS MB PROART B660-CREATOR D4 (90MB19F0-M0EAY0)
ASUS MB PROART B660-CREATOR D4 (90MB19F0-M0EAY0)

ASUS MB PROART B660-CREATOR D4

Varenr.:
90MB19F0-M0EAY0
EAN:
4711081518518
  • Processor-socket LGA 1700 (stik V)
  • Chipset Intel B660
  • M.2 Slot 3
  • Hukommelses slots 4 x DIMM, DDR4
  • Maksimal RAM-frekvens 5.333GHz
  • Max hukommelse understøttet 128GB
  • Form Factor ATX
Forventes på lager 07-04-2024
Beskrivelse

PROART B660-CREATOR D4

Features:
  • Socket LGA 1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors
  • Comprehensive connectivity: 2.5 Gb & 1 Gb onboard Ethernet, three M.2 slots, ThunderboltTM header support, USB-C DisplayPortTM and a USB 3.2 Gen 2x2 front panel connector with Quick Charge 4+
  • Next-gen performance: 12+1 power stages rated for 50 amps, PCIe® 5.0 ready
  • Optimized thermal design: A massive VRM and chipset heatsink, aluminum M.2 heatsinks, six 4-pin PWM fan headers and an AIO pump header
  • ProArt gives you more: Two-Way AI Noise Cancelation for clear online communication and ProArt Creator Hub with CreationFirst for one-stop system control
  • Advanced security management: USB port restriction, software blacklisting and Windows Registry protection via ASUS Control Center Express
Specifications:

CPU
  • Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
  • Supports Intel® 10 nm CPU
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset
  • Intel® B660
Memory
  • 4 x DIMM, Max. 128GB, DDR4
  • 5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 NonECC, Unbuffered Memory
  • Dual Channel Memory Architecture
  • Supports Intel® Extreme Memory Profile (XMP)
  • OptiMem II
Graphics
  • 1 x HDMI® port
  • 1 x TypeC port supports DisplayPort output
  • 1 x DP IN that will have output through TypeC port
Expansion Slots
  • Intel® 12th Gen Processors 1 x PCIe 5.0/4.0/3.0 x16 slot
  • Intel® B660 Chipset
    • 1 x PCIe 3.0 x16 slot (supports x4 mode)
    • 1 x PCIe 3.0 x1 slot
Storage
  • Total supports 3 x M.2 slots and 4x SATA 6Gb/s ports
  • Intel® 12th Gen Processors
    • M.2_1 slot (Key M), type 2242/2260/2280/22110 Intel® 12th Gen processors support PCIe 4.0 x4 mode.
  • Intel® B660 Chipset
    • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
    • M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  • 4 x SATA 6Gb/s ports
Ethernet
  • 1 x Realtek 2.5Gb Ethernet
  • 1 x Intel® 1Gb Ethernet
  • ASUS LANGuard
Wireless & Bluetooth
  • M.2 slot only (Key E, PCIe)
USB
  • Rear USB (Total 9 ports)
    • 1 x USB 3.2 Gen 2 TypeC® port (shared with DisplayPort graphic output)
    • 4 x USB 3.2 Gen 1 ports (4 x TypeA)
    • 4 x USB 2.0 ports (6 x TypeA)
  • Front USB (Total 7 ports)
    • 1 x USB 3.2 Gen 2x2 connector (supports USB TypeC® with 60W PD/QC4+)
    • 1 x USB 3.2 Gen 1 header supports additional 2 x USB 3.2 Gen1 ports
    • 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
  • Realtek 7.1 Surround Sound High Definition Audio CODEC
    • Supports: Jackdetection, Multistreaming, Front Panel Jackretasking
    • Supports up to 24Bit/192 kHz playback
  • Audio Features
    • Power preregulator reduces power input noise to ensure consistent performance
    • Premium audio capacitors
    • Dedicated audio PCB layers
    • Audio cover
    • Unique depop circuit

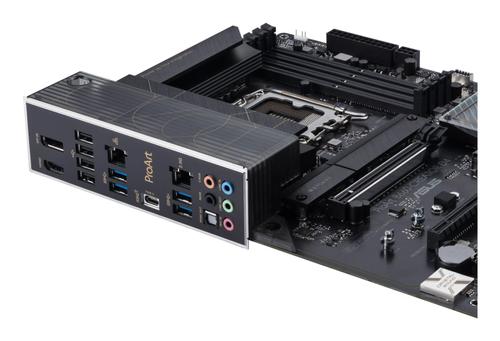

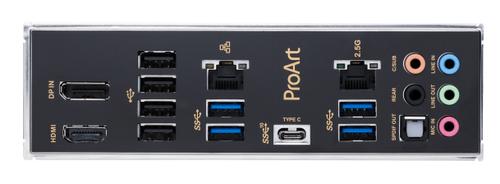

Back Panel I/O Ports
  • 1 x USB TypeC® port supports USB 3.2 Gen2 and DisplayPort output
  • 4 x USB 3.2 Gen 1 ports (4 x TypeA)
  • 4 x USB 2.0 ports (4 x TypeA)
  • 1 x DisplayPort (Input only)
  • 1 x HDMI® port
  • 1 x Realtek 2.5Gb Ethernet port
  • 1 x Intel® 1Gb Ethernet port
  • 5 x Audio jacks
  • 1 x Optical S/PDIF out port
Internal I/O Connectors
  • Fan and Cooling related
    • 1 x 4pin CPU Fan header
    • 1 x 4pin CPU OPT Fan header
    • 1 x 4pin AIO Pump header
    • 4 x 4pin Chassis Fan headers
  • Power related
    • 1 x 24pin Main Power connector
    • 1 x 8pin +12V Power connector
    • 1 x 4pin +12V Power connector
  • Storage related
    • 3 x M.2 slots (Key M)
    • 4 x SATA 6Gb/s ports
  • USB
    • 1 x USB 3.2 Gen 2x2 connector (supports USB TypeC® with 60W PD/QC4+)
    • 1 x USB 3.2 Gen 1 header supports additional 2 x USB 3.2 Gen1 ports
    • 2 x USB 2.0 headers support additional 4 USB 2.0 ports
  • Miscellaneous
    • 3 x Addressable Gen 2 headers
    • 1 x AURA RGB header
    • 1 x Clear CMOS header
    • 1 x COM Port header
    • 1 x Front Panel Audio header (AAFP)
    • 1 x M.2 slot (Key E)
    • 1 x SPI TPM header (141pin)
    • 1 x 203 pin System Panel header with Chassis intrude function
    • 1 x Thermal Sensor header
    • 1 x Thunderbolt™ header
Special Features
  • ASUS 5X PROTECTION III
    • DIGI+ VRM ( Digital power design with DrMOS)
    • Enhanced DRAM Overcurrent Protection
    • ESD Guards
    • LANGuard
    • Overvoltage Protection
    • SafeSlot
    • StainlessSteel Back I/O
  • ASUS QDesign
    • M.2 QLatch
    • QConnector
    • QDIMM
    • QLED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
    • QSlot
  • ASUS Thermal Solution
    • Flexible M.2 heatsink
    • VRM heatsink design
  • ASUS EZ DIY
    • ProCool
    • Premounted I/O shield
  • AURA Sync
    • AURA RGB header
    • Addressable Gen 2 headers
Software Features
  • ASUS Exclusive Software
  • Armoury Crate
    • AURA Creator
    • AURA Sync
    • Fan Xpert 4
    • TwoWay AI Noise Cancelation
  • AI Suite 3 Performance And Power Saving Utility
  • EPU
  • DIGI+ VRM
  • Turbo app
  • ASUS CPUZ
  • IT Management software supported ASUS Control Center Express(ACCE)
  • ProArt Creator Hub
  • CreationFirst
  • Norton Antivirus software (Free Trial version)
  • WinRAR
  • UEFI BIOS
  • ASUS EZ DIY
    • ASUS CrashFree BIOS 3
    • ASUS EZ Flash 3
    • ASUS UEFI BIOS EZ Mode
BIOS
  • 128 Mb
Manageability
  • WOL by PME, PXE
Accessories
  • Cables
    • 1 x DisplayPort cable
    • 2 x SATA 6Gb/s cables
  • Miscellaneous
    • 3 x M.2 Rubber Packages
    • 1 x Qconnector
  • Installation Media 1 x Support DVD
  • Documentation
    • 1 x ACC Express Activation Key Card
    • 1 x User guide
Operating System
  • Windows® 11 64bit, Windows® 10 64bit
Form Factor
  • ATX Form Factor
  • 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
