ASUS Intel Z890 Lga 1851 (Socket
You have to log in to shop/see prices.
|
|
ASUS Intel Z890 Lga 1851 (Socket
SKU:

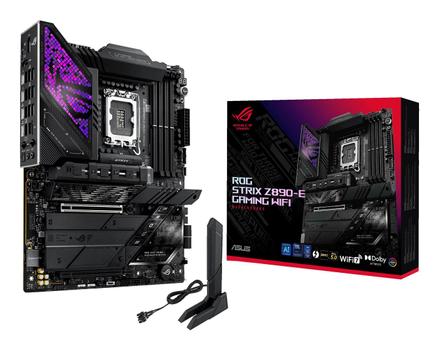

ROG STRIX Z890-E GAMING WIFI
-
Socket
LGA 1851
-
Chipset
Intel Z890
-
M.2 Slot
7
-
Memory slots
4 x DIMM, DDR5
-
Max RAM frequency
8.8GHz
-
Max Memory Supported
256GB
-
Form Factor
ATX
|
Description
Specifications
ASUS ROG STRIX Z890-E GAMING WIFI. Processorproducent: Intel, Processor sokkel: LGA 1851 (Socket V1), Kompatibel processor serie: Intel Core Ultra (Series 2). Understøttede hukommelsestyper: DDR5-SDRAM, Maksimal intern hukommelse: 192 GB, Hukommelses slots type: DIMM. Understøttede lagerdrev brugerflader: M.2, SATA III, Understøttet datalagringsdrev typer: HDD & SSD, RAID-niveauer: 0, 1, 5, 10. USB-stik type: USB Type-A, USB Type-C. Ethernet-grænsefladetype: 5 Gigabit Ethernet, Bedste Wi-Fi standard: Wi-Fi 7 (802.11be)
| Processorproducent | Intel |
| Processor sokkel | LGA 1851 (Socket V1) |
| Kompatibel processor serie | Intel Core Ultra (Series 2) |
| Understøttede hukommelsestyper | DDR5-SDRAM |
| Antal hukommelsesstik | 4 |
| Hukommelses slots type | DIMM |
| Hukommelseskanaler | To-kanals |
| ECC-kompatibilitet | NON-ECC |
| Understøttet hukommelsesur hastighed (maks.) | 8800 MHz |
| Maksimal intern hukommelse | 192 GB |
| Ikke-bufferet hukommelse | Yes |
| Understøttet datalagringsdrev typer | HDD & SSD |
| Understøttede lagerdrev brugerflader | M.2, SATA III |
| Antal understøttede HHD'er | 4 |
| Antal understøttede lagerdiske | 11 |
| Understøtter RAID | Yes |
| RAID-niveauer | 0, 1, 5, 10 |
| Understøttelse af parallel behandlingsteknologi | Ikke understøttet |
| On-board grafikkort | No |
| USB 2.0-stik | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) stik | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) -stik | 0 |
| USB 3.2 Gen 2x2-stik | 1 |
| Antal SATA III-stik | 4 |
| Antal SATA II stik | 0 |
| Antal SATA stik | 0 |
| Lydstik på frontpanel | Yes |
| ATX strømstrik (24 stikben) | Yes |
| CPU-ventilatorstik | Yes |
| Antal kabinetventilatorstik | 5 |
| Indbrudsttik til kabinet | Yes |
| EPS strømstik (8-pin) | Yes |
| Thunderbolt-headere | 1 |
| 12V strømstik | Yes |
| Antal USB 2.0-porte | 0 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 3 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-C-porte | 0 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) type-A-porte | 7 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) type-C-porte | 2 |
| Ethernet LAN-porte (RJ-45) | 1 |
| Antal VGA-porte (D-sub) | 0 |
| Antal HDMI-porte | 1 |
| Antal DVI-D-porte | 0 |
| Antal DisplayPorts | 1 |
| Mikrofonindgang | Yes |
| S/PDIF-udgang | Yes |
| Antal Thunderbolt-porte | 2 |
| USB-stik type | USB Type-A, USB Type-C |
| Ethernet LAN | Yes |
| Ethernet-grænsefladetype | 5 Gigabit Ethernet |
| Wi-Fi | Yes |
| Bedste Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Bluetooth | Yes |
| Bluetooth-version | 5.4 |
| Komponent til | PC |
| Motherboard form faktor | ATX |
| Bundkort chipset familie | Intel |
| Bundkort chipsæt | Intel Z890 |
| Lydchip | Realtek ALC4080 |
| Lyd-output kanaler | 7.1 kanaler |
| Produktfarve | Sort |
| Understøttede Windows-operativsystemer | Windows 11 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Antal M.2 (M) slots | 7 |
| BIOS-type | UEFI AMI |
| BIOS-hukommelsesstørrelse | 256 Mbit |
| Clear CMOS knap | Yes |
| Pakkebredde | 356 mm |
| Pakkedybde | 87 mm |
| Pakkehøjde | 281 mm |
| Pakkevægt | 2,58 kg |
| Bredde | 305 mm |
| Dybde | 244 mm |
| Antal mSATA-porte | 0 |
